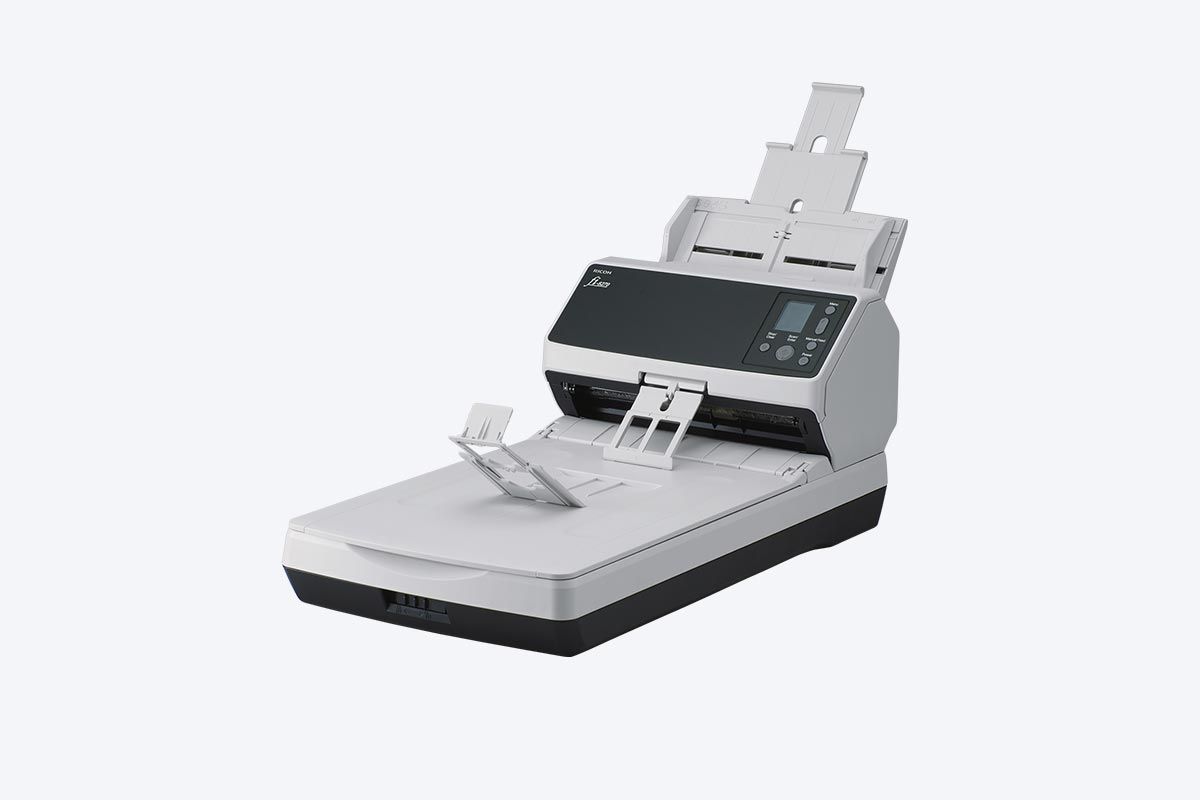

Ricoh Fi series fi-8270 Document Scanner
Highlights
Intelligent Paper Protection with Image Monitoring
Prevents paper jams through a combination of sound and image detection.
Multi-feed Detection
Ensures the capture of all images fed through the scanner.
Manual Feed Mode
Scans documents up to 7 mm, including IDs and pamphlets.
Heavy-Duty Design
Ensures uninterrupted workflows with industry-leading reliability and strength.
Maximize Imaging Solutions
PaperStream Technology is designed for any level of user with a simple interface.
SPECIFICATIONS
Product Name |
fi-8270 |
|
|---|---|---|
Scanner Type |
ADF (Automatic Document Feeder) / Manual Feed /Flatbed, Duplex |
|
Scanning Speed*1 (A4 Portrait)(Color*2/Grayscale*2/Monochrome*3) |
ADF |
Simplex: 70 ppm (200/300 dpi)Duplex: 140 ipm (200/300 dpi) |
Flatbed |
1.7 seconds (200/300 dpi) |
|
Image Sensor Type |
ADF: CIS x 2 (front x 1, back x 1)Flatbed: Color CCD X 1 |
|
Light Source |
ADF: RGB LED x 2 (front x 1, back x 1)Flatbed: White LED |
|
Optical Resolution |
600 dpi |
|
Output Resolution*4(Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 |
|
Output Format |
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
|
Background Colors |
ADF: White / Black (selectable)Flatbed: White (or optional black) |
|
Document Size (ADF) |
Maximum*6 |
215.9 x 355.6 mm (8.5 x 14 in.) |
Minimum |
48 x 50 mm (1.9 x 2 in.) |
|
Long Page Scanning*7 |
6,096 mm (240 in.) |
|
Document Size (Flatbed) |
Maximum |
215.9 x 297 mm (8.5 x 11.7 in.) |
Paper Weight (Thickness) |
Paper |
20 to 465 g/m² (5.3 to 124 lb)*8 |
Booklet |
Less than 7 mm (0.276 in.)*9 |
|
Plastic Card |
1.4 mm (0.055 in.) or less*10 |
|
ADF Capacity*11*12 |
100 sheets (A4 80 g/m² or Letter 20 lb) |
|
Expected Daily Volume*13 |
10,000 sheets |
|
Multifeed Detection |
Overlap detection (Ultrasonic sensor), Length detection |
|
Paper Protection |
Image monitoring, Sound detection (iSOP)*14 |
|
Interface |
USB |
USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
Ethernet |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Power Requirements |
AC 100V – 240V 50/60 Hz |
|
Power Consumption |
Operating Mode |
28 W or less / 17 W (Eco mode) |
Sleep Mode |
LAN: 2.0 W or lessUSB: 1.4 W or less |
|
Auto Standby (Off) Mode |
0.2 W or less |
|
Operating Environment |
Temperature |
5 to 35 °C (41 to 95 °F) |
Relative Humidity |
15 to 80% (Non-condensing) |
|
Environmental Compliance |
ENERGY STAR, RoHS |
|
Dimensions (W x D x H)*15 |
300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) |
|
Weight |
8.8 kg (19.4 lb) |
|
Supported Operating System |
Windows 11*16, Windows 10*16, Windows Server 2025, Windows Server 2022,Windows Server 2019, Windows Server 2016, Linux (Ubuntu)*17 |
|
Software / Drivers*19 |
PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*18,Image Scanner Driver for Linux (SANE)*18, PaperStream Capture, PaperStream ClickScan,PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, PaperStreamCentral Admin |
|
Image Processing Functions |
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC),Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal,Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction,Background pattern removal, Cropping, Static threshold |
|
Included Items |
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM |
|
