Description
Viewsonic ViewBoard IN6521C-1C Google Certified EDLA ViewBoard 65” 4K Interactive Display
- Built-in 50-Megapixel camera with 4x digital zooming
- Automatically focus framing on narrator through voice tracking
- 8-array microphone delivers exceptional audio clarity and voice pickup
- Streamline connectivity and BYOM with USB-C ports for instant plug-and-play access
- Optional AI-driven tools to automate classroom tasks and enhance engagement
SPECIFICATIONS
- Display
Panel Size: 65″
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1428.48 (H) x 803.52 (V)
Aspect Ratio: 16:9
Resolution: UHD 3840×2160
Colors: 1.07B colors
Brightness: 450 nits (typ.)
Contrast Ratio: 5000:1 (typ.)
Response Time: 6.5 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours
Surface Treatment: Hardness:9H, Anti-Glare
Orientation: Landscape - Platform
Processor: Octa-Core CPU
GPU: Multi-Core Mali-G52
RAM: 8GB
Storage: 128GB - Touch
Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32767 x 32767
Touch Point: EDLA/Android/Windows: 50 points of touch
Palm Rejection: Yes
- INPUT
HDMI: x3 (4K@60Hz)
RGB / VGA: x1
DisplayPort: x1
Audio: x1
RS232: x1
SD/SDHC: TF Card Slot(Micro SD)

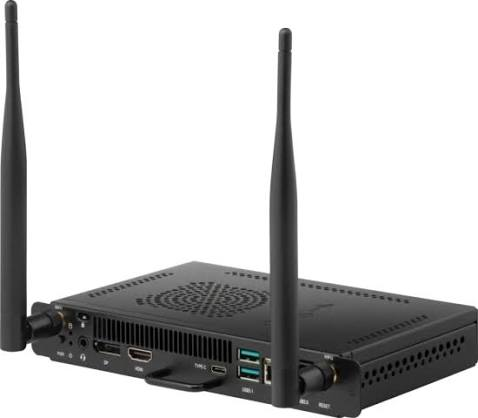

OPS: x1 PC slot (Optional Intel Standard OPS) - OUTPUT
HDMI: x1
Audio: x1 (Line out)
SPDIF: x1 (optical) - LAN
RJ45: x2
- USB
Type A: x5 (USB 3.2 x 4, all support SmartPort USB; USB 2.0 x 1 for system update)
Type B: x2 (front x1, rear x1)
Type C: x2 (PD 65W x1; PD 15W x1) - Speaker
20W x 2 front soundbar
- Built-in Camera
50MP, 4K resolution
- Microphone
Built-in 8-array microphone
- Light Sensor
Yes
- Embedded OS
EDLA-certified with Android 14
- Special Features
All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000) - Power
Voltage: 100-240V AC +/- 10% Wide Range
Consumption: On: 81.56W ; Ｏff:< 0.5 W - ERGONOMICS
Wall Mount (VESA® ): 600 x 400
- OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing - DIMENSIONS (W x H x D)
Physical (inch / mm): 58.6 x 36.04 x 3.92 inch / 1488.4 x 915.3 x 99.4 mm
Packaging (inch / mm): 64.1 x 40.31 x 7.3 inch / 1628 x 1024 x 185 mm - WEIGHT
Net (lb / kg): 71.1 lb / 32.25 kg
Gross (lb / kg): 86.2 lb / 39.10 kg - REGULATIONS
ES 8.0, WEEE, RoHS, REACH
- PACKAGE CONTENTS
1. 3M Power Cord x1
2. 3M USB Touch cable x1
3. Passive pen x 2
4. Quick Start Guide
5. 3M HDMI cable x1
6. Remote controller x1
7. AAA battery x2
