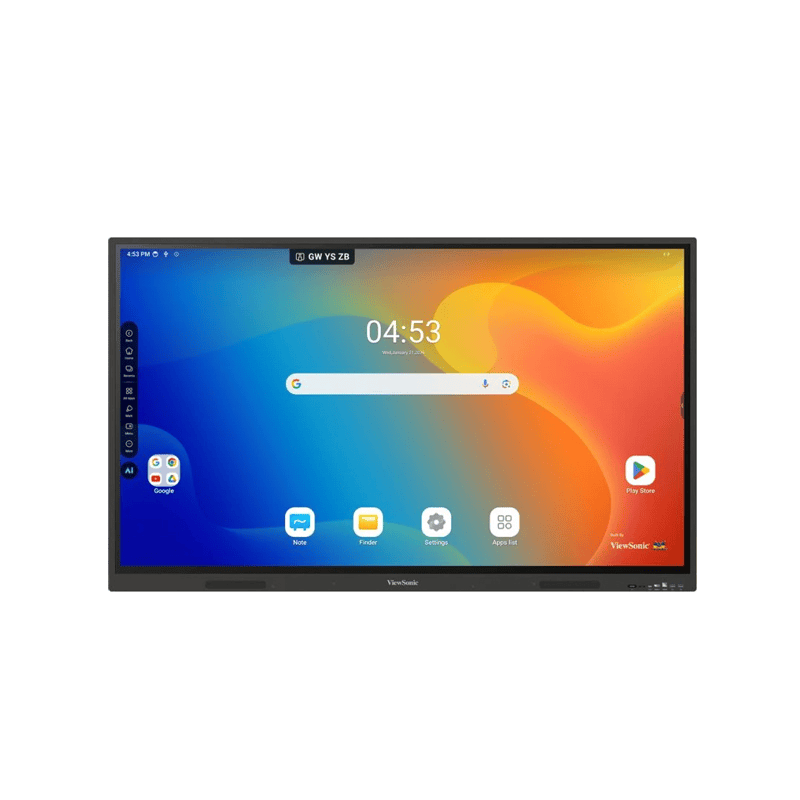

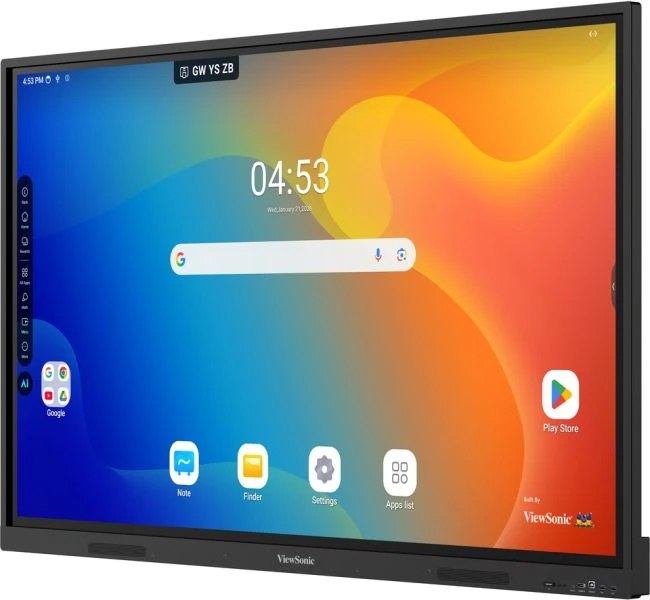

Viewsonic ViewBoard IN6505-C 65” 4K Interactive Display

Description

Viewsonic ViewBoard IN6505-C 65” 4K Interactive Display

• Google certified EDLA with access to Google apps on Android™ 16
• Advanced security controls and compliance standards that safeguard your data​
• Efficient data transfer with the USB-C port
• Built-in AI tools enhance convenience and teaching experience

SPECIFICATIONS

• Display
  Panel Size: 65″
  Panel Type: TFT LCD Module with DLED Backlight
  Display Area (mm): 1428.48(H) × 803.52(V) (64.5”)
  Aspect Ratio: 16:9
  Resolution: UHD 3840×2160(Pixels)
  Colors: 1.07B colors (8-bit + FRC)
  Brightness: 400 nits
  Contrast Ratio: 5000:1 (max. with DCR enabled)
  Response Time: 6.5ms
  Viewing Angles: H=178, V=178
  Backlight Life: 50,000 Hours
  Surface Treatment: Hardness: 9H, Anti-glare coating, Zero bonding
  Bezel: 16.55 x 16.55 x 16.55 x 45 mm (L/R/T/B)
  Orientation: Landscape
• Platform
  Processor: Octa-Core
  RAM: 8GB
  Storage: 128GB
• Touch
  Type/ Tech: IR Recognition / Ultra Fine Touch Technology
  Touch Resolution: 32768 × 32768
  Touch Point: Windows: 50 Android: 50

• INPUT
  HDMI: x 3,
  Front: 1,
  Rear: 2 (HDMI 1 support ARC),
  (All support HDMI 2.0 3840 x 2160 @ 60Hz, HDCP 1.4/2.2, CEC)
  Audio: x 1
  RS232: x 1
  OPS: x 1 (80pin slot)
  WiFi: Built-in WiFi & Bluetooth Module
  (2.4GHz: 18 dBm, 5GHz: 15 dBm, BT: 4 dBm)
• OUTPUT
  HDMI: x 1 (3840 x 2160 @ 60Hz)
  Audio: x 1
  SPDIF: x 1
• LAN
  RJ45: x 1
  (10/100/1000 Mbps, Android max 1000M, OPS and touch out max 100M, USB-C no support)
• USB
  Type A: x 4,
  Front: 2 (USB 3.2 Gen 1) all support Smart USB,
  Side: 1 (USB 3.2 Gen 1) support EDLA only,
  Side: 1 (USB 2.0) support Smart USB
  Type B: x 2,
  Front: 1 (USB 2.0),
  Side: 1 (USB 2.0)
  Type C: x 1,
  Front: 1 (USB3.2 Gen1) *PD, Extended screen & touchback are not supported.
• SPEAKERS
  20W x 2
• Embedded OS
  Android 16 (EDLA)
• Special Features
  Light Sensor: Yes
  Environmental Sensor: Yes
• Power
  Voltage: 100-240V AC +/- 10% Wide Range
  Consumption: On:72.54W (Normal), Off:<0.5W
• ERGONOMICS
  Wall Mount (VESA® ): 600 x 400 mm
• OPERATING CONDITIONS
  Temperature (º C): 0°C to 40°C
  Humidity: 20% ~ 80% RH non-condensing
• DIMENSIONS (W x H x D)
  Physical (inch / mm): 58.7 x 35.37 x 3.9(in) / 1491 x 898.5 x 99.1(mm)
  Packaging (inch / mm): 64 x 40 x 7(in) / 1628 x 1014 x 185(mm)
• WEIGHT
  Net (lb / kg): 66.58lb / 30.2kg
  Gross (lb / kg): 84.22lb / 38.2kg
• REGULATIONS
  FCC ID, Energy Star, CE EMC, CB, CE R, RoHS, BIS, WPC
• Energy Star version
  8.0
• PACKAGE CONTENTS
  1. 3m power cord (IN plug) x 1 2. Touch pen x 2 3. Quick Start Guide with Compliance statement
• Compatible Slot-in PC
  VPC3 series

Warranty: 3 years
