Description

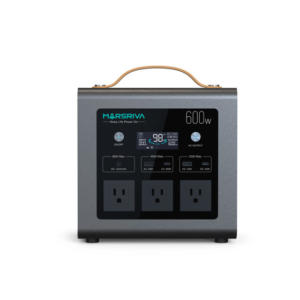

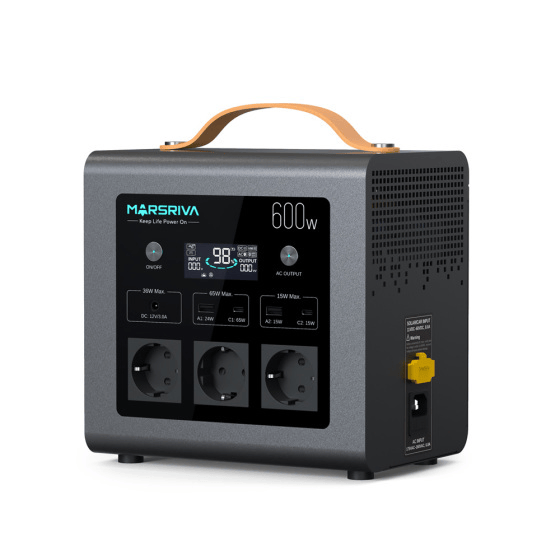

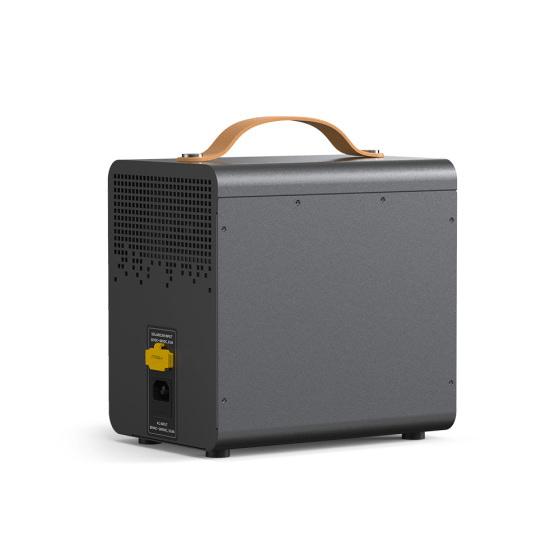

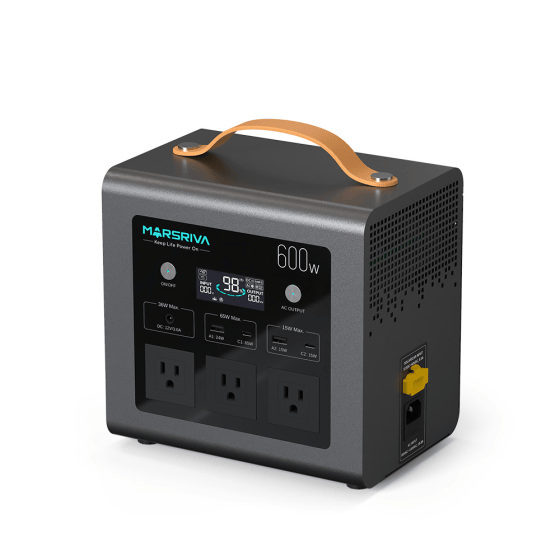

MP6 Plus (600W)
Wherever you need power
Capacity: 512Wh (12.8V / 40000mAh)
- • 600W Pure Sine Wave:
High-performance, grid-quality AC output ensuring safe and stable operation for heavy-duty appliances.• Premium LiFePO4 Cell:
Advanced thermal stability and extended cycle life for ultimate safety and durability.• Rapid AC Charge:
Advanced fast-charging architecture delivers high-efficiency power replenishment to minimize downtime.• Built-in MPPT System:
Intelligent solar tracking controller maximizes energy conversion efficiency for off-grid charging.• 10ms UPS Protection:
Uninterruptible power supply guarantees a seamless transition to keep critical devices running during grid outages.
SPECIFICATION
| MODEL | MP6 Plus | ||||||
| GENERAL INFO | |||||||
| Rated Power | 600W (Max.) | ||||||
| Mars-Boost * | 1200W (Max.) | ||||||
| Battery Capacity | 512Wh (12.8VDC/40Ah) | ||||||
| Battery Type | LiFePO4 Battery | ||||||
| Net Weight | 7.3kg | ||||||
| Dimension (W × D × H) | 235 × 160 × 236 mm | ||||||
| AC OUTPUT | |||||||
| AC Output (230V Model) | 230VAC, 50/60Hz, 600W (Max.) | ||||||
| AC Output (120V Model) | 120VAC, 50/60Hz, 600W (Max.) | ||||||
| Waveform | Pure Sine Wave | ||||||
| UPS Switch Time | ＜10ms | ||||||
| DC OUTPUT | |||||||
| USB-A1 Output | 5V⎓3A, 9/12V⎓2A, 24W (Max.) | ||||||
| USB-A2 Output | 5V⎓3A, 15W (Max.) | ||||||
| USB-C1 Output | 5/9/12/15V⎓3A, 20V⎓5A, 100W (Max.) | ||||||
| USB-C2 Output | 5V⎓3A, 15W (Max.) | ||||||
| Total USB Output | 115W (Max.); A1+C1=100W (Max.); A2+C2=15W (Max.) | ||||||
| DC 5521 Output | 12V⎓3A, 36W (Max.) | ||||||
| INPUT | |||||||
| AC Charging (230V Model) | 170–260VAC, 50/60Hz, 600W (Max.) | ||||||
| AC Charging (120V Model) | 85–140VAC, 50/60Hz, 600W (Max.) | ||||||
| DC Charging (XT60) | 11–60VDC, 8A, 300W (Max.) | ||||||
| ENVIRONMENT | |||||||
| Charge Temperature | 0°C to 45°C (32°F to 113°F) | ||||||
| Discharge Temperature | -20°C to 45°C (-4°F to 113°F) | ||||||
| Storage Temperature | 0°C to 45°C (32°F to 113°F) | ||||||
* The Mars-Boost function varies by country and region. The exact figures should be based on the actual situation.
