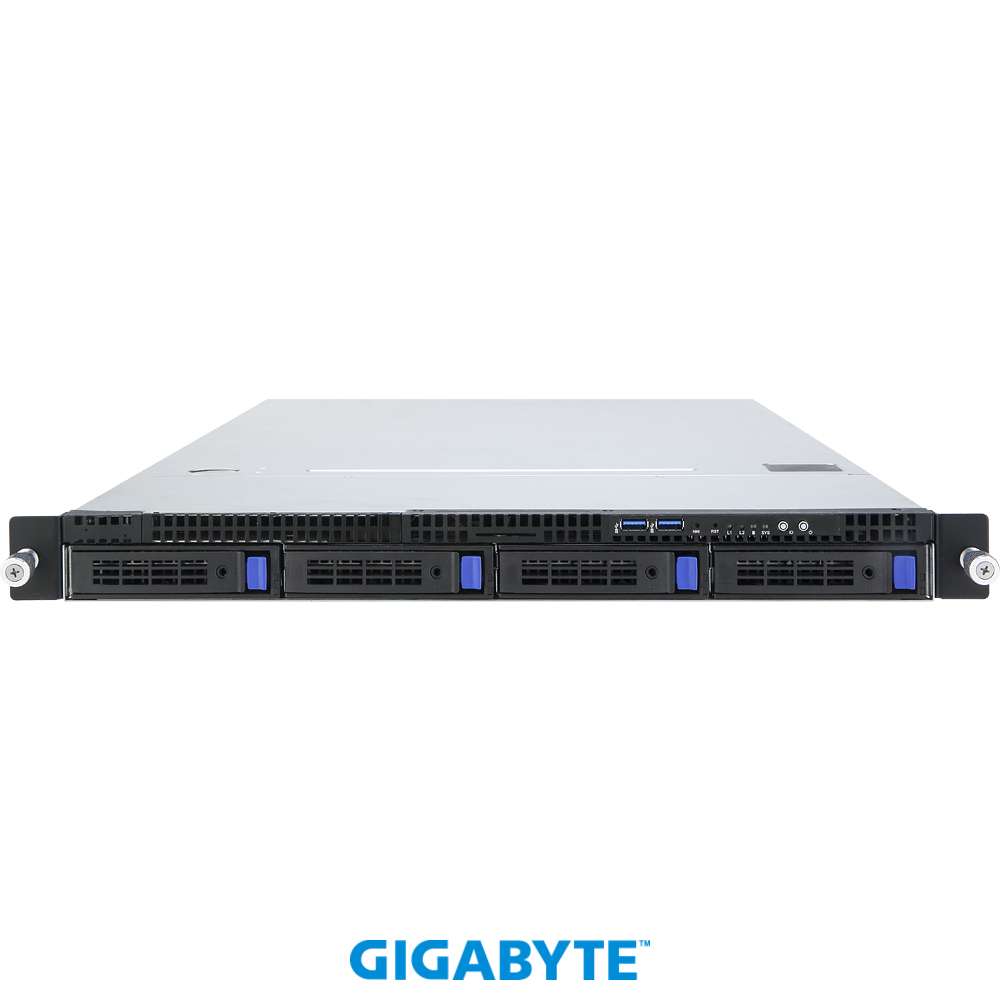

GIGABYTE R121-X30 Rack Servers Intel Xeon E-2224 3.4GHz, 8M cache, 4C/4T, turbo (71W)

₱149,000.00

Category: Tags: , , , , , , , , , , ,

Description

R121-X30 (rev. 100)

Single Socket 1U Rackmount Server
Single Socket 1U Rackmount Server

  • Intel® Xeon® processor E3-1200 V6/V5 product family
  • Intel® C232
  • 4 x UDIMM slots, DDR4 2400MHz
  • 4 x 3.5″ hot-swappable HDD/SSD bays
  • Supports SAS 6Gb/s / SATA III 6Gb/s connections
  • 2 x GbE LAN ports (Intel® I210)
  • 1 x M.2 slot
  • 1 x 250W 80 PLUS Bronze 100~220V AC PSU
  • ASPEED AST2400 server management controller

Overview

Supports the Intel® Xeon® Processor E3-1200 V6/ V5 Product Family

Formerly known as Greenlow, this new generation of single socket server and workstation processors is based on the 14nm process technology but comes with the new Skylake microarchitecture.

Among the main features of this new product family is the adoption of the DDR4 memory technology within the Xeon E3 line of processors, which brings a significant memory speed and capacity boost over the previous generation (up to 64GB at 2133MHz). The other big new feature is the increase of the number and speed of PCIe lanes available from 8 Gen2 lanes to up to 20 Gen3 lanes, which allows much wider board configuration possibilities.

R121-X30 Product Overview

DDR4 Memory Support

The Intel Xeon E3-1200 V5 product family is the first generation of Xeon E3 processors to support the DDR4 memory technology. Compared to DDR3, this new generation brings:

+50%Bandwidth Performance
-35%Power Consumption @ 2DPC
-50%Power Consumption @ 3DPC

M.2 Slot Onboard

The R121-X30 comes equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.

The M.2 slot of this system supports cards up to 80mm length and 20mm width, and the following specifications:

  • M.2 PCIe SSD Cards up to 10Gb/s
  • M.2 SATA SSD Cards up to 6Gb/s

Easy BIOS Update

Because updating your BIOS to a newer version can be a troublesome experience, GIGABYTE has developed this integrated function (no additional software to install) that lets you update the BIOS of your server / workstation motherboard(s):

  • Without having to install CPUs, memory, drives, operating system, etc.
  • Without having to power on the system (but a power supply must be connected)
  • One board at a time via our IPMI 2.0 web interface
  • Multiple boards simultaneously via command line

Download the Easy BIOS Update user guide here.



Remote System Management

This motherboard is equipped with an onboard Aspeed AST2400 controller, providing comprehensive remote system monitoring with a whole set of management features, such as:

  • Remote Boot & Reset
  • Remote Image Mounting
  • Full Control Over Network, Users, Services, etc.
  • Complete System Monitoring & Diagnostics

Download the Server Management Console user guide here.

Dynamic Fan Speed Control

GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements.

* Enabled on selected models & performed through BMC console management GUI

The Best Components Only

  • All IR Power Design

    The CPU and memory power delivery of our motherboards is ensured by industry-leading IR Digital PWM and IR PowIRstage IC controllers. These components guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.

  • OS-CON Capacitors

    With a service life of a minimum of 50,000 hours, our server motherboards are built with ultra long lasting components for the highest reliability possible.

  • High End Ferrite Core Chokes

    The top quality chokes we install on our server motherboards also contribute to an ultra stable power delivery to the CPU and the memory.

STANDARD SPECS

R122-X30

 Intel Xeon E Processor
4x DIMM slots support 2 channel, upto DDR4 2666MHz.
Dual 1 GB RJ45 Lan port
1 management LAN 10/100/1G
SAS (12 GB/s), SATA (6Gb/s) HDD backplane
1 x power with LED, 1 x ID with LED, 1 x reset, 1 x system Status, 2 x LAN status, 1 x HDD status, 2 x USB3.0
4 x 3.5” Hot-swap HDD + 2 x 2.5” Internal HDD
SW Intel® SATA RAID 0/1/10/5 support
2 x low profile slot (x8 for OCP, x8 for riser)
1 OCP mezzanine card (options)
1 x 400W 80+ gold PSU

CPU

 Intel® Xeon® E-2224 3.4GHz, 8M cache, 4C/4T, turbo (71W)

RAM

 8GB 2666MT/s DDR4 ECC UDIMM

HDD

 1TB Sata 7200 3.5″

Warranty 3 Years
