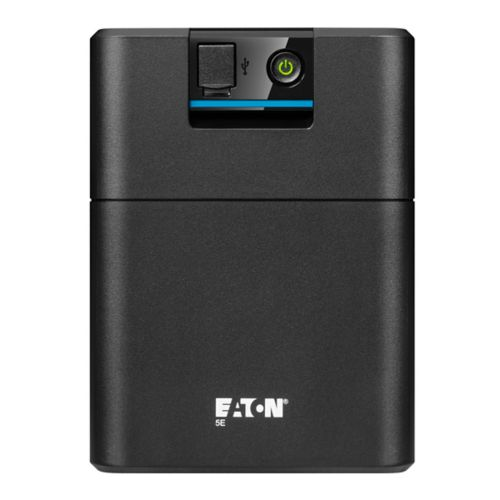

Eaton 5E Gen2 UPS- 5E1200UI

Description

Eaton 5E Gen2 UPS- 5E1200UI, USB IEC, 1200 VA, 660 W,
Input: C14, Outputs: (6) C13, Tower

General specifications
PRODUCT NAME: Eaton 5E Gen2 UPS
CATALOG NUMBER: 5E1200UI
EAN 3553340704277
PRODUCT
LENGTH/DEPTH: 330 mm
PRODUCT HEIGHT: 180 mm
PRODUCT WIDTH: 133 mm
PRODUCT WEIGHT: 8.13 kg
COMPLIANCES
CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3

SPECIFICATIONS

Product specifications
SPECIAL FEATURES
Automatic Voltage
Regulation (AVR)
•
Saves space with a
compact tower
design
•
HID-compliant USB
port, for automatic
integration with
major operating
systems
(Windows/Mac
OS/Linux)
•
TOPOLOGY Line-interactive
CONSTRUCTION TYPE Free standing model
COLOR Black
VA RATING 1200 VA
WATTAGE 660 W
RACK MOUNTING KIT No
PACKAGE CONTENTS
(2) IEC-IEC output
cables
•
• Quick start
• Safety instructions
SURGE PROTECTION Yes
INTERNAL BYPASS No
HOT SWAP POWER No
AUTO SHUTDOWN
FUNCTION Yes
PRIMARY FREQUENCY –
MAX 63 Hz
PRIMARY FREQUENCY –
MIN 45 Hz
INPUT CONNECTION C14
NOMINAL FREQUENCY 50/60 Hz
INPUT FREQUENCY
RANGE 45-63 Hz
RECEPTACLE (6) C13
NUMBER OF OUTPUTS
C13 6
VOLTAGE 230V
OUTPUT NOMINAL
VOLTAGE 230V
FEED TYPE 1
VOLTAGE TYPE AC
RUNTIME GRAPH View runtime graph
BATTERY MANAGEMENT Automatic battery test,
Resources
BROCHURES eaton-dpq-5egen2-upsquickstartguide-en-gb.pdf
CERTIFICATION REPORTS eaton-dpq-5egen2-upscertificate-en-gb.pdf
MANUALS AND USER
GUIDES
eaton-dpq-5egen2-upsmanual-en-gb.pdf
TECHNICAL DATA SHEETS eaton-dpq-5egen2-upsdatasheet-en-gb.pdf
deep-discharge protection,
cold-start capable
BATTERY RATING 12 V / 7 Ah
BATTERY TYPE Sealed, lead-acid
EXTENDED BATTERY
CAPABILITY No
COMMUNICATION USB port (HID compliant)
EXPANSION SLOTS No
ETHERNET INTERFACE No
INCLUDES NETWORK
CARD No
SOFTWARE
COMPATIBILITY
Eaton UPS Companion
(enables safe system
shutdown, energy usage
metering and
configuration of UPS
settings)
USER INTERFACE LEDs
TYPE OF INTERFACE USB
POTENTIAL FREE SWITCH
CONTACT No
RELATIVE HUMIDITY 0-90% non-condensing
TEMPERATURE RANGE 0° to 40°C (32° to 104°F)
OPERATING
TEMPERATURE – MAX 40 °C
OPERATING
TEMPERATURE – MIN 0 °C
OUTPUT APPARENT
POWER 1200 VA
INPUT VOLTAGE – MAX 300 V
INPUT VOLTAGE – MIN 140 V
OUTPUT VOLTAGE – MAX 257 V
OUTPUT VOLTAGE – MIN 195 V
SECONDARY FREQUENCY
– MAX 60 Hz
SECONDARY FREQUENCY
– MIN 50 Hz
BATTERY QUANTITY 2
EFFICIENCY AT MAX.
LOAD 95
INPUT VOLTAGE RANGE 140-300 V
OUTPUT FREQUENCY 50/60 Hz
OUTPUT VOLTAGE
RANGE 195-257 V
PHASE (INPUT) 1
PHASE (OUTPUT) 1
POWER CONSUMPTION 34.7 W
INPUT NOMINAL
VOLTAGE
230V default
(220/230/240V)
