Description

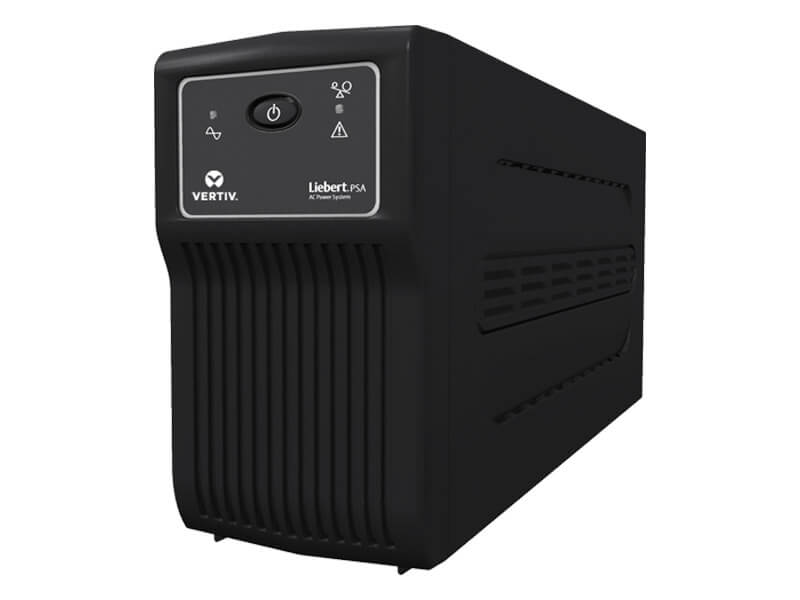

Liebert PSA 500VA -1500VA
The Liebert® PSA is an economical, environmentally-friendly line-interactive UPS that offers full- featured power protection for small office computers and electronic equipment. Liebert® Multilink software automatically powers down your computer in the event of an extended power outage. It also has full event management and display UPS instrumentation on screen.
Best Suited For:
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
- Telecom
Features
Wide input voltage window and buck / boost operation corrects poor input power without a need to use precious battery power.
3-6 minutes runtime at full load
USB communication
Mini Tower Design
3 to 6 battery-backed outlets
1 to 2 surge-only outlets
RJ-45 Data line protection
User replaceable batteries
Support Multilink shutdown software
Flexibility
Available in four sizes: 500, 650, 1000 and 1500VA; 120VAC or 230VAC
Three to six battery-backed UPS outlets, depending on model size
One to two surge-only outlets, differentiated by color
Reliability
Up to five minutes of battery backup time at full load
Full sequenced battery testing to ensure batteries are available when needed
Advance early warning of UPS shutdown
Lightning and surge protection (TVSS)
RJ-45 port for data line surge protection
USB communications / shutdown software and cable included
User-replaceable batteries
User-replaceable batteries
Total Cost of Ownership
Two-year replace or repair warranty
Environment-friendly
Full RoHS R6 compliance
The Liebert PSA is Ideally Suited for
Professional Desktop PCs
Professional Workstations
Small Routers, Bridges and Hubs
Point-of-sale Terminals
Other Sensitive Electronics
| General Information | |
| Product Name | PSA 1000 VA 600W 230V |
| Product Series | PSA |
| Product Model | PSA1000MT3-230U |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug / Connector Type | IEC 320-C14 |
| Receptacles | 6 x IEC 60320 C132 x IEC 60320 C13 |
| Transfer Time | 6 ms |
| Battery Information | |
| Backup / Run Time (Full Load) | 3 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Power Description | |
| Load Capacity | 1000 VA/600 W |
| Input Voltage | 120 V AC230 V AC |
| Input Voltage Range | 160 V AC – 287 V AC |
| Output Voltage | 230 V AC |
| Physical Characteristics | |
| Form Factor | Tower |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Energy Star | No |
| Other Information | |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Network (RJ-45) | Yes |
| Product Family | PSA |
| Backup / Run Time (Half Load) | 10 Minute |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 600 W |
| Color | Black |
| Number of Receptacles | 62 |
| Waveform Type | Stepped Sine Wave |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| USB | Yes |
| Serial Port | Yes |
| Number of Batteries | 2 |
| Battery Characteristics | Valve-regulated |
| Dataline Protection | RJ-45 |
| Emergency Power OFF | No |
| Status Indicators | LED |
| Protection Type | SurgeOver Loading |
| Surge Energy Rating | 220 J |
