Description
Ubiquiti WiFi BaseStation XG
UWB-XG
Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.
SPECS
Dimensions
471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″)
WiFi Standard
WiFi 5
Spatial Streams
12
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
1500+
Uplink
10 GbE
Mounting
Wall, Pole (Mounts Included), VESA (Optional)
Weatherproofing
IP67
Power Method
PoE++
MIMO
5 GHz
Low/Mid/High-band: 4 x 4 (DL MU-MIMO)
Max. Data Rate
5 GHz
Low/Mid/High-band: 1.7 Gbps (BW80)
Antenna Gain
5 GHz
Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90°
Max. TX Power
5 GHz
25 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11n
6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40)
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓
Captive Hotspot Portal
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓
Max. Power Consumption
31W
Includes PoE Adapter
✓
Supported Voltage Range
44—57V DC
Networking Interface
(1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port
Weight
3.2 kg (7.1 lb)
Pole Mount Diameter
1~3″ (25~76 mm)
Antennas
(1) Integrated dual-mode antenna array
Management
Ethernet Bluetooth
Enclosure Material
Polycarbonate, aluminum alloy
LEDs
System
R/G/B
Channel Bandwidth
HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Operating Frequency
US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz
Ambient Operating Temperature
-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 6.0.45 and later

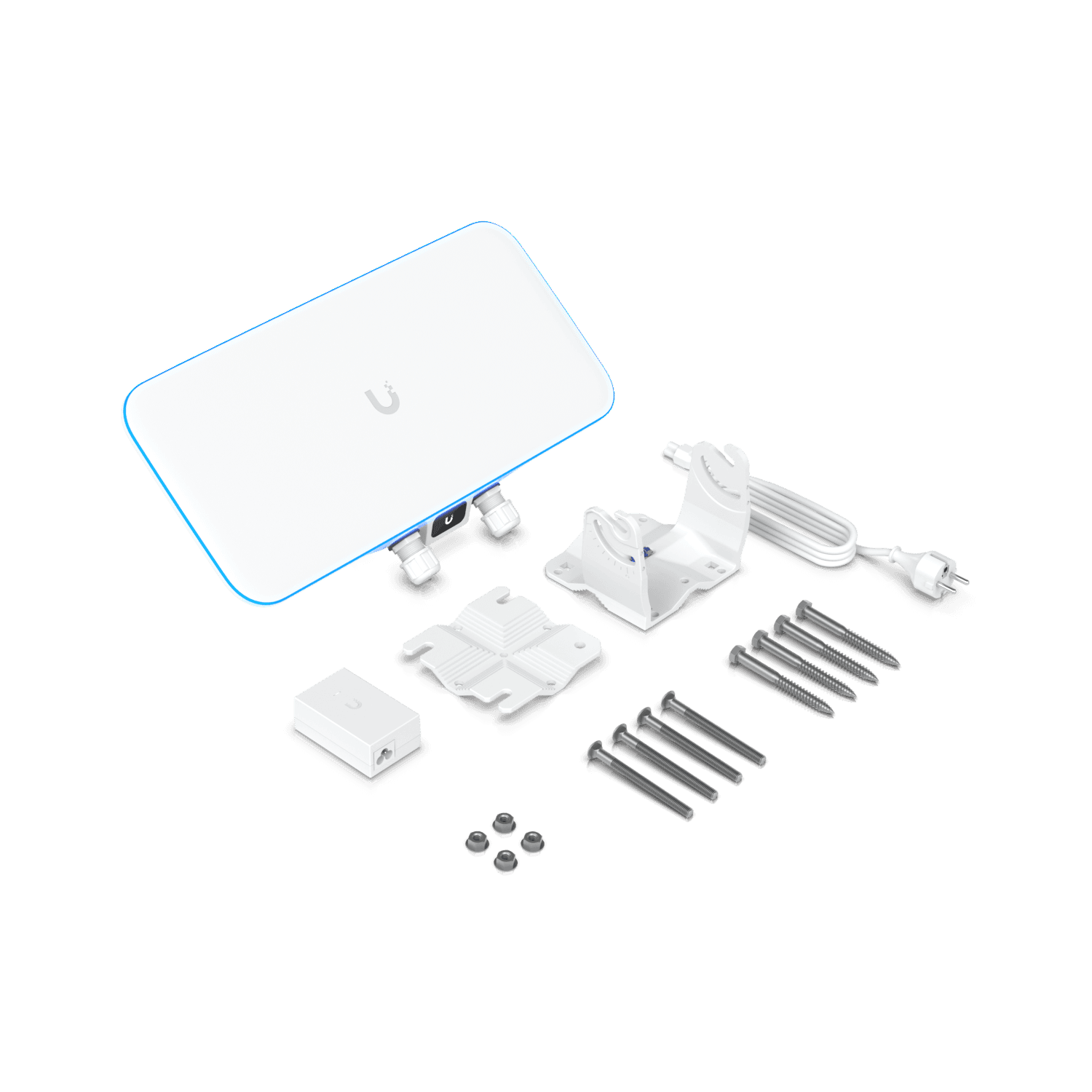

In the box
