Description

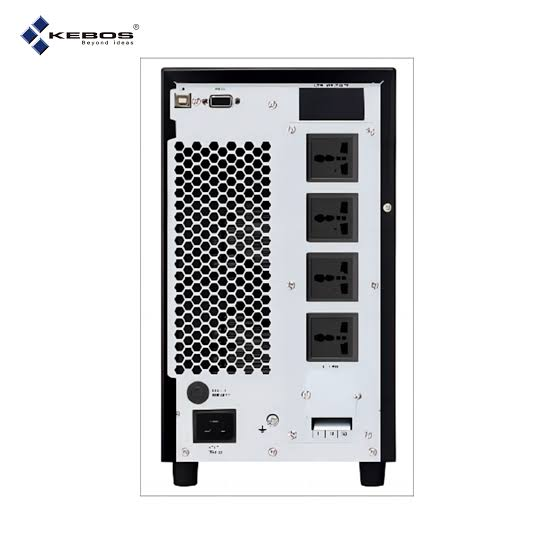

KH11 Plus 1-10KVA
KH11 Plus 1-10KVA is specifically designed for operation in poor power areas. They provide high power density with long backup time in a compact size. It’s ideal for ATMs, banking, and other business-critical applications. Users can adjust the charging current from 1A to 6A according to different applications.
MODEL KH11 Plus 2KVA
Capacity 2000VA/2000W
True double-conversion
- Microprocessor control optimizes reliability
- Input power factor correction
- Output power factor 1.0(1-3KVA)
- Wide input voltage (110 V – 300 V)
- Converter mode available
- ECO mode for energy saving( Only available for 1-3KVA)
- Generator compatible
- Adjustable charging current via LCD or software(1A-6A) only available for 6K/10K models
- Smart SNMP works well with either USB or RS-232 together
- Comprehensive display allows easy monitoring and access to UPS status
SPECS
MODEL KH11 Plus 2KVA
Capacity 2000VA/2000W
INPUT
Nominal Voltage 208/220/230/240Vac
Voltage Range 110-300Vac (160-300 Vac at 100% load | 110-300 Vac at 50% load)
Frequency Range 50/60Hz (auto-sensing), 40-70Hz range
Power Factor 0.99
OUTPUT
Nominal Voltage 208/220/230/240Vac
Voltage Regulation +/-1%
Frequency 50 Hz or 60 Hz +/- 0.1 Hz
Transfer Time Zero
Output Socket 4 x Universal Type (Surge Protection & Battery Back-Up)
Waveform Pure Sinewave
BATTERY
Battery Type 4 x 12V 9Ah, Maintenance-Free, Sealed Lead Acid, Leak Proof
Typical Recharge Time 4 Hours to recover 90-100% capacity
SYSTEM FEATURES
Efficiency AC Mode: 89% | Battery Mode: 87%
Crest Factor 3:1 of T.H.D. @ Linear Load
Harmonic Distortion 3% of T.H.D. (linear load), <6% of T.H.D. (non-linear load)
Protection Full Protection against Discharge, Overcharge, Overload, Short Circuit & Surge
Alarm Battery Mode: Sounding every 4 seconds. Low Battery: Sounding every second Overload: Sounding every 0.5 second Fault: Continuously sounding
ENVIRONMENTAL
Operating Temperature 0 to 40 Degrees Celsius
Humidity Range 0 to 90% (non-condensing)
Noise Level Less than 40dB
Dimension D x W x H (mm) 395 x 145 x 240
Net Weight (kg) 18.6
STANDARDS
Safety IEC/EN62040-1, IEC/EN60950-1
EMC IEC/EN62040-2, IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
Warranty 2 Years / 1 Year Battery
